PANEL BUILDING PROJECTS
The images below are examples of bespoke panels we have designed and manufactured for several of our customers. Please feel free to contact us with any of your project requirements.

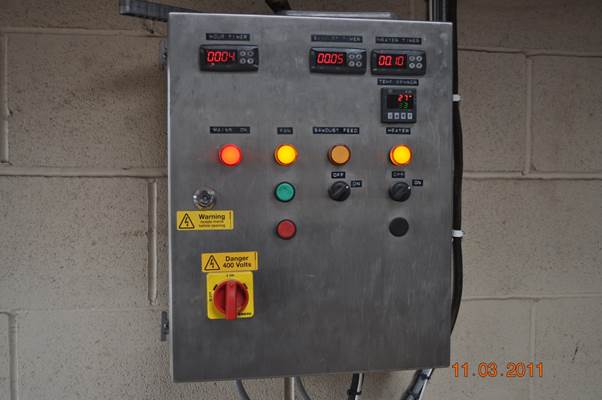

1.The panel below is used to control a Cheese Smoking machine.

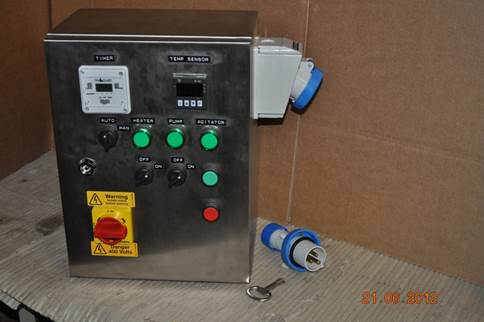

2. This panel was made to control a Cheese Vat.
External view.
Internal view of Cheese Vat controller.

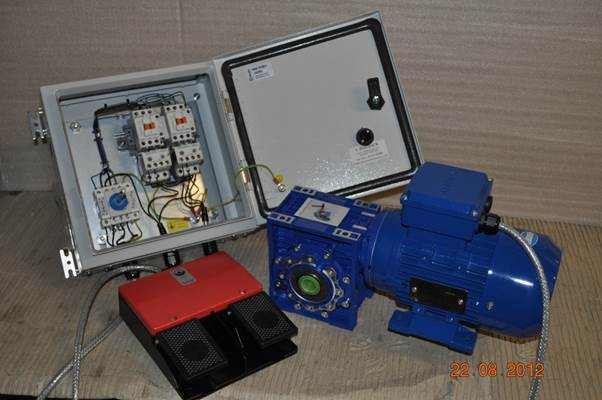

3. This image shows a simple forward and reverse starter operated via a double foot pedal, the motor has a gearbox attached as well. The gearbox is to reduce the output speed, the application is a machine which is used to wind securing wire around hose couplings.
4. The following two images are internal and external photos of a small panel which is used to run a pump which feeds a holding tank. There is a liquid level relay in the circuit to help prevent the tank from overfilling!!
